| Article number: | WY006-EU-BK |
| Availability: | In stock (85) |
Uv5r
The most popular two-way radio used for airsoft and other outdoor events
| Item number | UV-5R |
| General | |
| Frequency Range | 65-108MHz(FM Receive only) |
| 136-174MHZ / 220-260MHz / 400-480MHZ (TX/RX) | |
| Channel No. | 128 |
| Frequency Stability | ±2.5ppm |
| Antenna | High gain DualBand antenna |
| Antenna Impedance | 50ω |
| Operating Voltage | DC 7.4V |
| Mode of operation | Simple or semi-duplex |
| Dimension (W x H x D) | 100 x 52 x 32 mm |
| Weight | 250g（including battery, antenna) |
| Transmitter | |
| Output power | 4W / 1W (Max 5W) |
| Modulation Mode | 16kφF3E / 11kφF3E |
| Maximum deviation | ＜5kHz(Wide) / ＜2.5kHz(Narrow) |
| Spurious Radiation | ＜5μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | ≤1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | ＜10% |

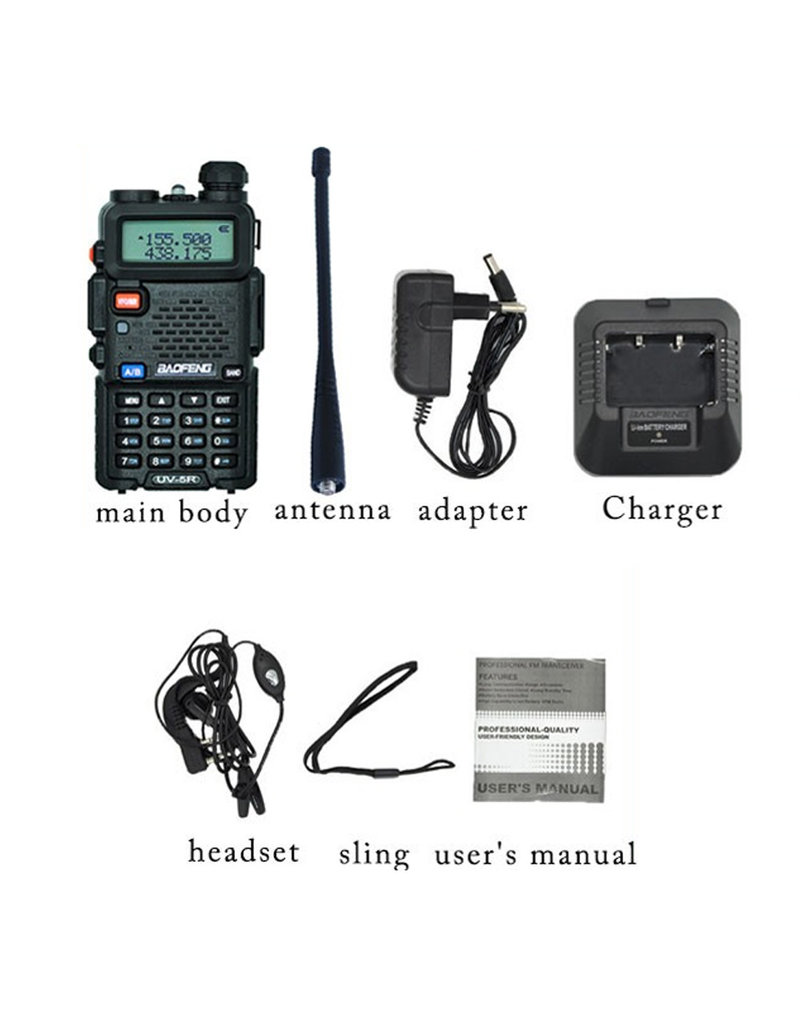

Package Include:
Does not include a Ptt earpiece
